Most important infos

Mixing pump station for rent or purchase

Please feel free to contact us for further information.

‍

Purchase price: 30.000, - €

Duration so far: 12,000 hours

used
Fully functional

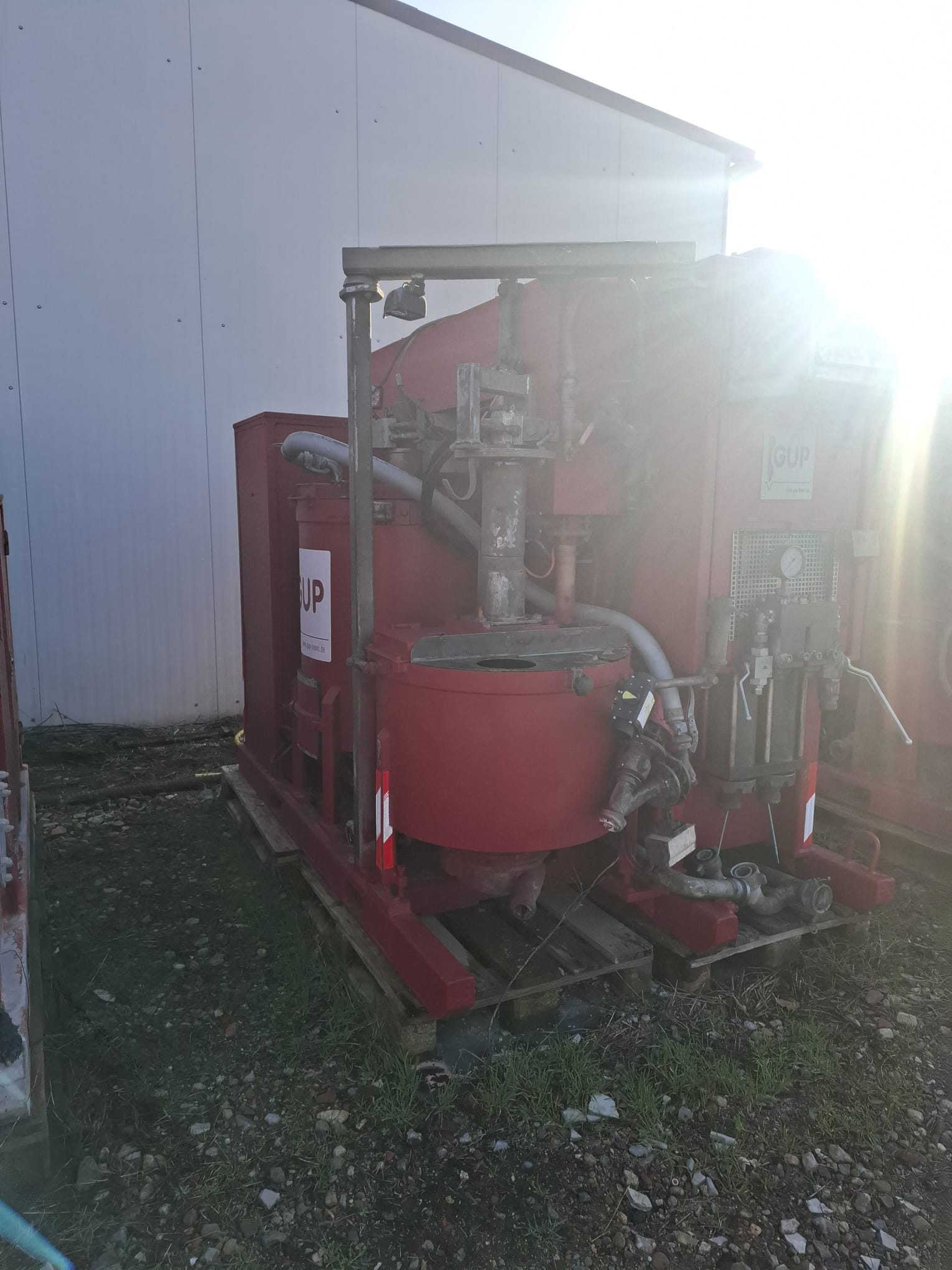

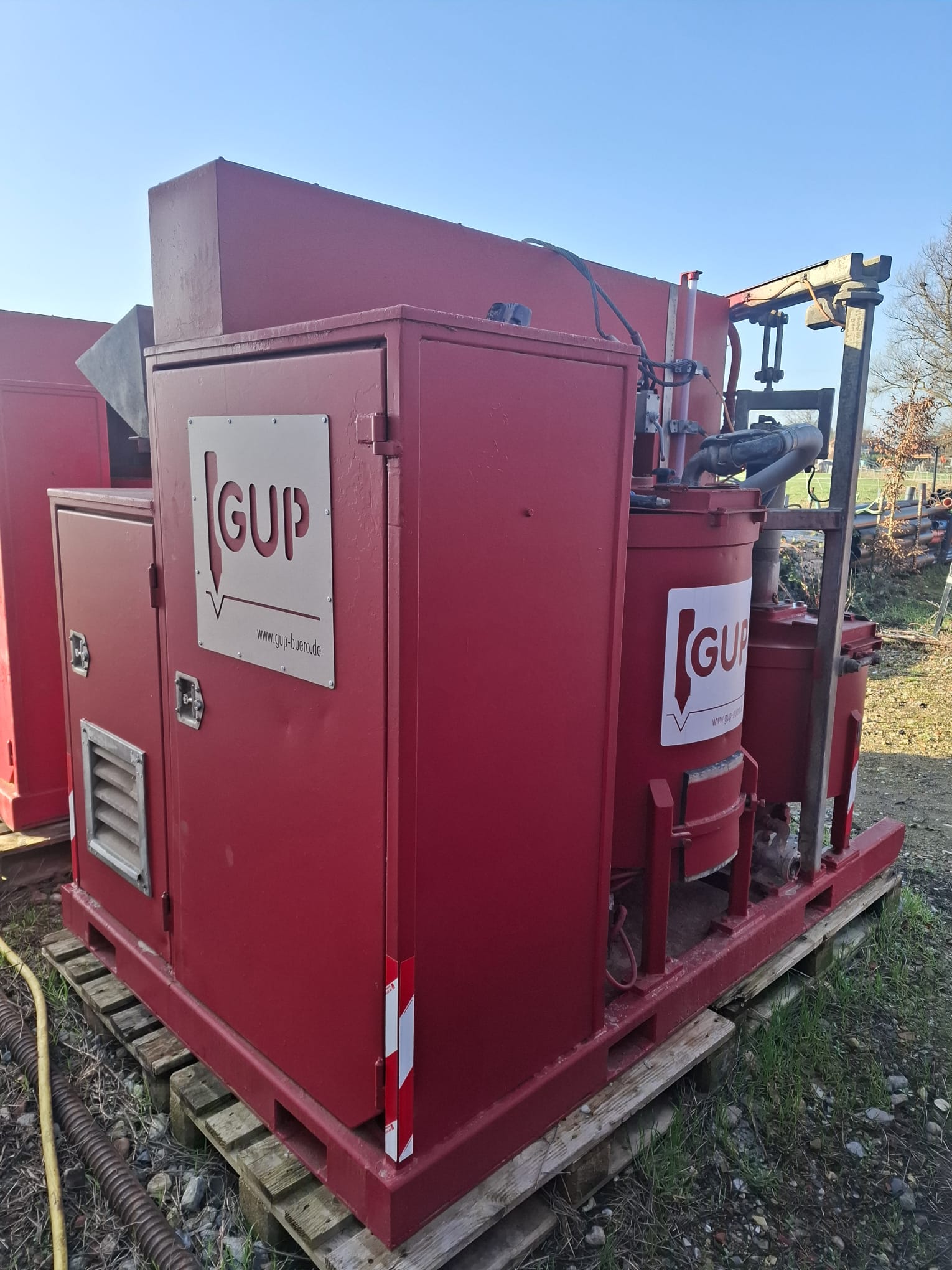

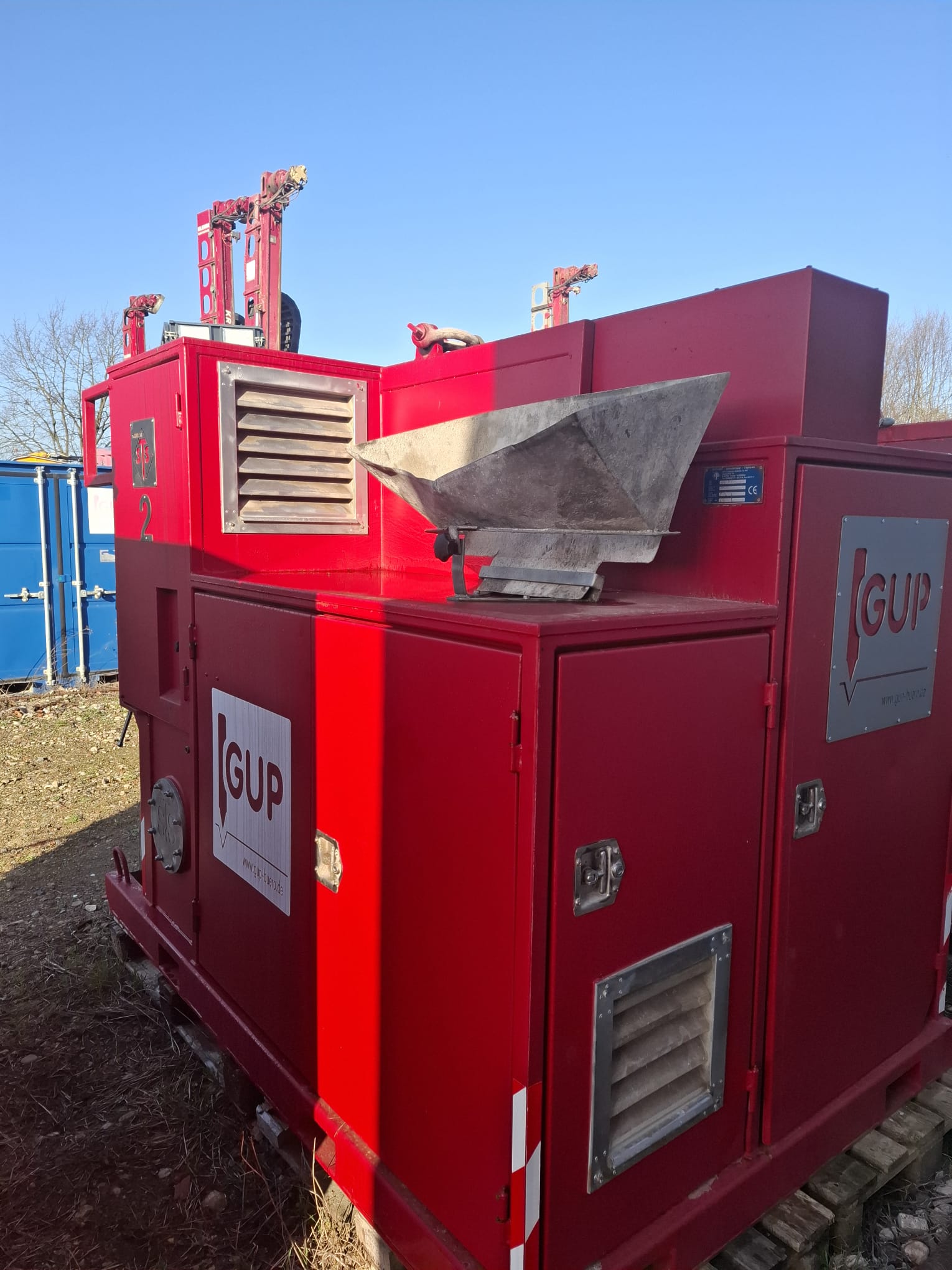

Condition-as seen in the photos

specifications

Drive: electro-hydraulic
Drive power: 30.0 kW
Total power consumption: approx. 35.0 kW

Feed pump output

Quantity Q max.: 270 l/min.
Pressure P max.: 120 bar
ball valves

Mixing tank capacity

Total capacity: 250 l
Net capacity: 200 l
Circulation capacity: 500 l/min.
Manual loading: up to 3.5 m³/h
Loading with dosing screw: up to 4.5 m³/h

Storage tank capacity

Total capacity: 450 l
Net capacity: 400 l

ports

Electrical: CEE 63 A/400 V AC, 50 Hz, IP 54
water:
G 2 BSPP AG DN 50 - C coupling
G 1 BSPP IG DN 25 - GEKA
Pressure side: G 1 ¼ BSPP IG DN 32 - RD 55
Circular page: G 1 BSPP IG DN 25 - RD 32

Dimensions L x W x H/weight

2,450 x 1,600 x 2,100 mm/approx. 2,750 kg

Name of the machine

MPS 110 mixing-pumping station

machine type

Mixing pump station

Brief specification

Manually without touch display

rental unit

Minimum unit one week

availability

On request · available shortly

Location/operating radius

44866

can be used in

capacity

7,000 liters

agitator

· Hydraulically operated
· Continuously adjustable
· For suspensions, slurries and liquid mixtures

material

· steel container, coated on the inside
· Suitable for abrasive media

dimensions

· Length: approx. 4.2 m
· Width: approx. 2.2 m
· Height: approx. 2.6 m

weight

Weight when empty: approx. 4.8 t

ports

· Filling and emptying connections
· Optionally with hose system

Staff & operations

professionals
By appointment

Scope of services
Assembly & commissioning by arrangement

Logistics & organization

transportation
Optionally organized by Zipp Rentals
Delivery by low loader. Machines should be available for unloading.

Construction time
approx. 1—2 hours on site

Minimum rental period
1 week

Plant for the production and extraction of drilling fluid/suspension
